Intercom P87

Precision Recognition for High-Security Facilities

Facial Recognition | 5 Unlocking Methods | Dual Camera

8” LCD
Touchscreen

5
Acces Methods

Anti-Spoofing
Facial Recognition

IP65 & IK08
Protection

Battery DC12V

PoE / DC 12V/2A

Tamper Alarm

Dimensions

140 × 300 × 41.8 mm

120°
Wide-Angle 2MP HD Dual Camera

WDR Technology
Supported

20,000
Users Supported

Pictures

Intercom P87 product img

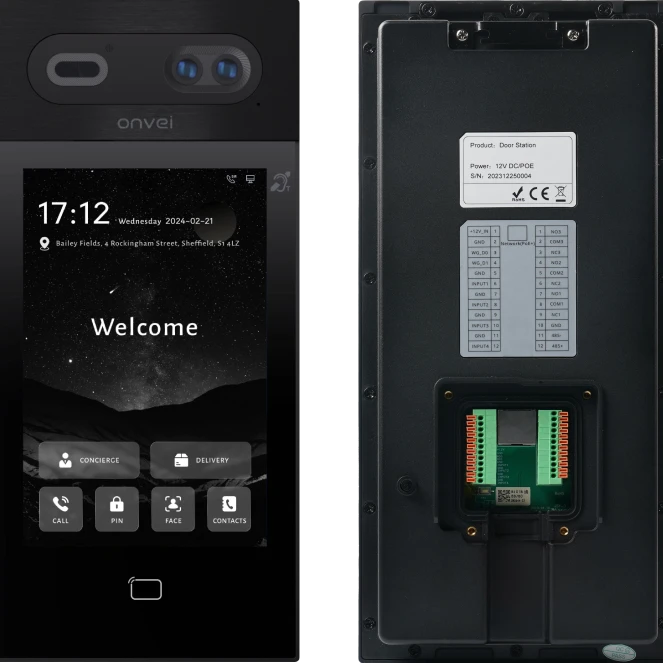

Onvei Intercom P87

Overview

The Onvei Intercom P87 is a comprehensive access-control solution for high-security environments. With accurate dual-camera WDR 2 MP facial recognition (with liveness detection), encrypted card & PIN access and up to 20,000 users support, it ensures controlled, contactless entry. Built to industrial standards with IP65/IK08 protection and tamper alarm, P87 excels in securing server rooms - robust, flexible and ready for advanced SIP-based integration.

Features

  • 3 output relays for door locks
  • 8-inch IPS LCD touch screen
  • 120° Wide-Angle 2MP HD Dual Camera with Automatic Lighting
  • Supports 20,000 users, 20,000 faces and 60,000 cards
  • Tamper Alarm
  • Precision Recognition in Any Lighting
  • High-Security Access for Server Rooms
  • Multi-Method Authentication
  • Aluminium alloy panel
  • Durable (IP65 and IK08 certified)
  • SIP 2.0 Compatibility
  • Induction loop for hearing impaired
  • Anti-Spoofing Facial Recognition
  • WDR Technology Supported

Specifications

  • Model: Intercom P87
  • OS: Android
  • Installation: Surface / Flush Mounting
  • RAM / ROM: 2GB / 8GB
  • Front Panel: Aluminium
  • Power Supply: PoE (802.3af) or DC 12V/2A
  • Standby / Rated Power: 8 / 16 W
  • Camera: 2MP, CMOS, WDR
  • IR Sensor: Supported
  • Wiegand Port: Supported
  • Ethernet Port: 1 x RJ45, 10/100 Mbps adaptive
  • Access Methods: Facial Recognition, IC Card, PIN Code, Mobile APP, Call
  • Reset Button: 1
  • RS485 Port: 1
  • Relay Out: 3
  • Input: 4
  • IP / IK Class: IP65 / IK08
  • Surface Mounting DIM: 140 x 300 x 41.8 mm
  • Flush Mounting DIM: 140 x 300 x 60.3 mm
  • Operating Temperature: -40°c to +55°c
  • Storage Temperature: -40°c to +70°c
  • Operating Humidity: 10% to 90% (non-condensing)
  • Display: 8-inch IPS LCD
  • Resolution: 1280 x 800
  • Audio Codec: G.711
  • DTMF: RFC2833
  • Microphone: Built-in microphone with Echo Cancellation
  • Speaker: 8Ω / 1W
  • Video Codec: H.264
  • Video Resolution: up to 1920 x 1080
  • Viewing Angle: 120° (H) / 75° (V) / 131° (D)
  • Max. Image Transfer Rate: 1080p – 25fps
  • Light Compensation: LED white light
  • Networking Protocols: ONVIF, SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPv4, ARP, ICMP
  • Color: Black

Included

  • Intercom P87 x1
  • Flush Mounting Box x1
  • Hanging Plate x1
  • Screwing Kit x1
  • Quick Start Guide x1
