Door Station C32

High-Security Access | Wiegand Support | Slim Design​

Intercom C32 mobile img
Intercom C32 hero img

Door Station C32

Secure Access, Simplified

High-Security Access | Wiegand Support | Slim Design​

110° Wide-Angle Coverage

4
Acces Methods

Aluminium Alloy Panel

tuya
smartlife icon

Works with Tuya

POE Support

PoE+ Supported

Onvif Support

Tamper Alarm

SIP 2.0 Supported
Integrates with Other SIP devices

IP65 & IK06 Rated

60,000 Cards
Supported

Pictures

Intercom C32 product img

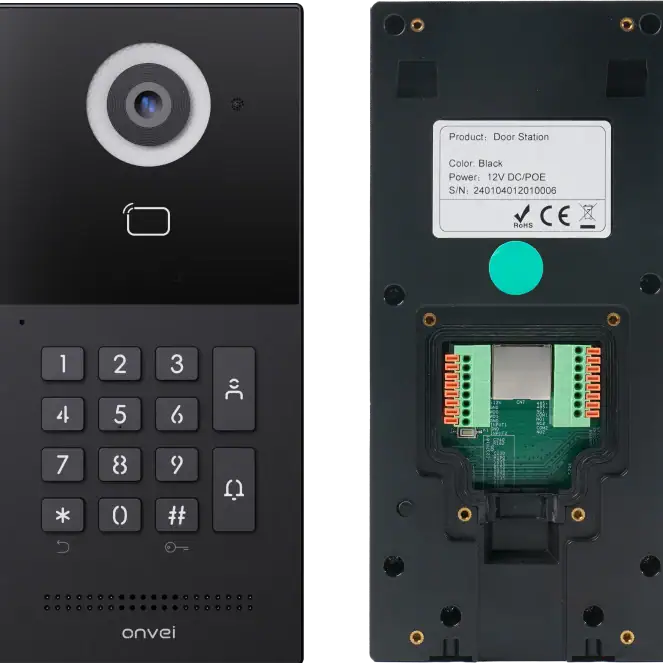

Door Station C32

Overview

The C32 is a versatile SIP Door station that combines security and convenience with a built-in keypad. Featuring a 2MP HD camera with wide-angle viewing and automatic lighting, it supports multiple access methods, including IC card, ID card, PIN code and app access. With a rugged aluminium alloy panel, IP65 protection and tamper alarm, the C32 ensures reliable, secure entry in various environments. Designed for easy installation and integration with SIP systems, it is the perfect solution for modern, secure access control.

Features

  • Door entry methods: Indoor Monitors, IC card (13.56MHz), ID card(125kHz), APP
  • 2 output relays for door locks
  • 110°wide-angle 2MP HD camera with automatic lighting
  • Supports Surface and Flush Mounting
  • Supports 60,000 cards
  • Tamper alarm
  • Durable (IP65 and IK06 certified)
  • SIP 2.0 Compatibility
  • Built-in Microphone & Speaker
  • Low Temperature Resistance
  • Keypad Supported
  • Aluminium alloy panel
  • Slim Design

Specifications

  • Model: Door Station C32
  • OS: Linux
  • Installation: Flush Mounting
  • RAM / ROM: 64 / 128 MB
  • Power Supply: PoE (802.3af) or DC 12V/2A
  • Standby / Rated Power: 1.5 / 3.5 W
  • Camera: 2MP, CMOS
  • Wiegand Port: Supported
  • Ethernet Port: 1 x RJ45, 10/100 Mbps adaptive
  • Access Methods: IC Card, PIN Code, Mobile APP, Call
  • Reset Button: 1
  • RS485 Port: 1
  • Relay Out: 2
  • Input: 2
  • IP / IK Class: IP65 / IK06
  • Operating Temperature: -40°c to +55°c
  • Operating Humidity: 10% to 90% (non-condensing)
  • Flush Mounting DIM: 120 x 230 x 48 mm
  • Audio Codec: G.711
  • DTMF: RFC2833
  • Microphone: Built-in microphone with Echo Cancellation
  • Video Codec: H.264
  • Video Resolution: up to 1280 x 720
  • Viewing Angle: 110° (H) / 60° (V) / 125° (D)
  • Max. Image Transfer Rate: 720p – 25fps
  • Light Compensation: LED white light
  • Networking Protocols: ONVIF, SIP, UDP, TCP, RTP, RTSP, NTP, DNS, HTTP, DHCP, IPv4, ARP, ICMP
  • Casing: Front Panel Aluminium
  • Color: Black
  • Dimension: 230 x 120 x 48 mm

Included

  • Door Station C32 x1
  • Flush Mounting Box x1
  • Front Aluminium panel x1
  • Screwing Kit x1
